ASRock H110 Pro BTC+ 13GPU Mining Motherboard

9,000.00

Description

ASRock H110 Pro BTC+ 13GPU Mining Motherboard

Product details of ASRock H110 Pro BTC+ 13GPU Mining Motherboard

  • 1 PCIe 3.0 x16, 12 PCIe 2.0 x1
  • 4 SATA3, 1 M.2 (SATA3)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • Graphics Output: DVI-D
  • Intel® Gigabit LAN
  • Onboard Power On / Reset Button
  • Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors
  • Supports DDR4 2400/2133


This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.

ASRock H110 Pro BTC+ is ready to mine right out of box, no need to do any additional bios setup to enable multi GPU mining. Hybrid GPU system is very popular among hardcore miners, this motherboard is ready for up to 13 mixed AMD+NVIDIA GPU mining under Windows10, not only that, H110 Pro BTC+ is also fully compatible with professional mining operating system Such as SimplMining OS & ethOS, it is able to mine Ethereum, Zcash, Monero, and other GPU-minable coins.


ASRock H110 Pro BTC+ 13GPU Mining Motherboard

Step by step setup guide for windows

Plug in the Molex & SATA power connector for maximum stability, please make sure all power cords are coming from the same power supply, otherwise it may cause system fail or unrecoverable damage
*All power cords must come from the same power supply.

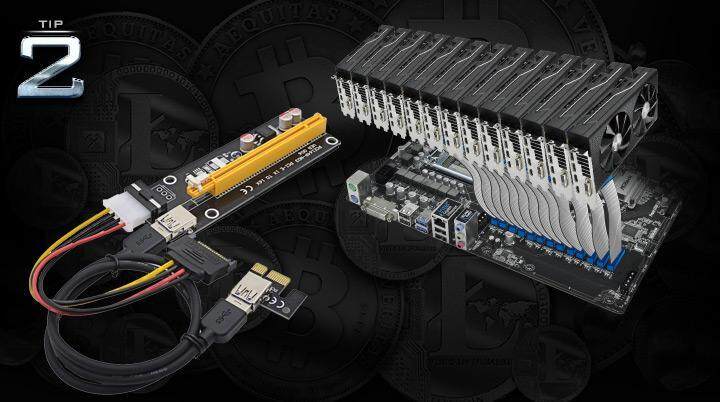

Connect VGA card to the motherboard via riser card, we recommend using USB type riser kit for stable signal transfer and easy cable management
Note:
1.Riser kit is not included in the retail box.

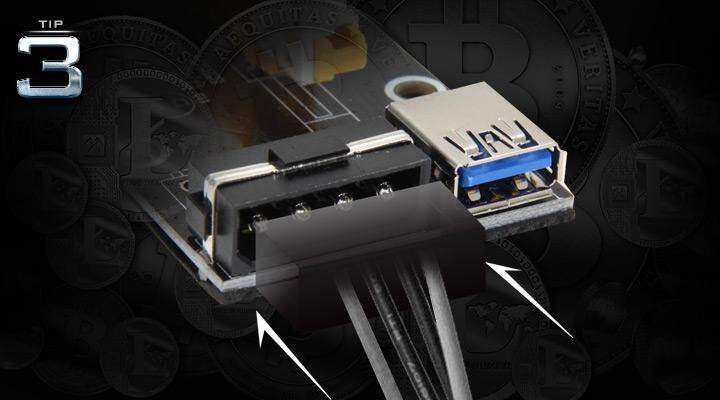

Please always remember to plug in the external power supply connector

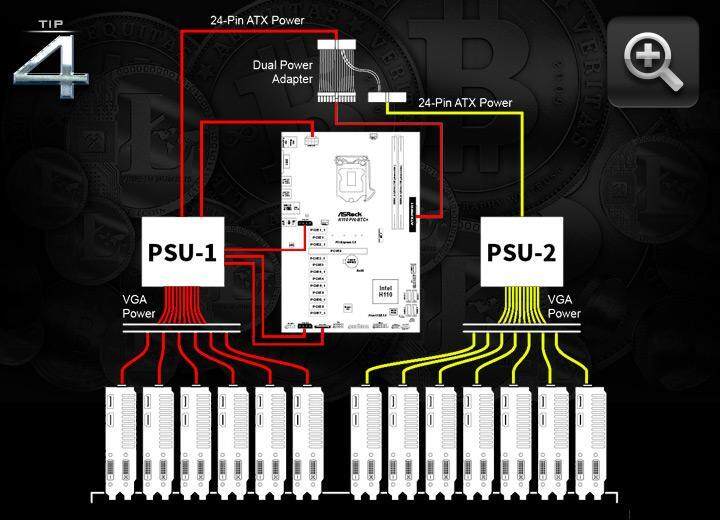

If a secondary power supply is needed, please use dual power supply adapter in order to start up both power supplies simultaneously.
Note:
1.Depend on the system setup and VGA were used, we recommend to have at least 2400W for 13 GPU mining.
2.We highly recommend NOT to start power supply by shorting the specific wire on the 24Pin ATX cable.
3.Dual power supply adapter cable/module is not included in the retail box.

100% Genuine factory seal product with including Full VAT !

Specifications of ASRock H110 Pro BTC+ 13GPU Mining Motherboard

  • Brand
    Asrock
  • SKU
    101694305_NP-1022440232
  • Motherboard Memory Technology
    DDR4
  • Chipset
    Intel H110
  • Number of memory slots
    2
  • Number Of Pcie Slots
    16
  • Model
    H110 Pro BTC+
